Your digital paper writer output is too valuable to trust to just any processor. ProtectÊyour investment with the only processor specifically designed for this technology.
The Colex RTKDP models are the first RA4 processors exclusively designed for the output of digitalÊpaper writers such as Durst Lambda, OCE Lightjet, or any other wide format digital paper printer. TheÊColex design team introduces innovative and significant features to ensure quality and reliability ofÊprocessing along with ease of use.
Research shows that users of Wide Format Digital Paper Writers want:
- Straight Feeding of Long Roll Material Ð It is critical that long roll material is fed on a straightÊpath into the processor to ensure trouble free transport.
- Process Stability Ð Computer Imaging Technology commonly results in large areas of even tonesÊwhere any processing variation is immediately noticeable.
- High Speed Processing Ð Given todayÕs production pressures, the last thing you want to do is toÊintroduce bottlenecks into your workflow. You need a fast processor. This becomes critical whenÊprocessing Display Transparency Materials which normally slows down process times by 60%.
Features
- Feed System designed for ease of handling and straight feeding
- Oversized Developer Tank and Enhanced Replenishment System for process stability
- Built-in Roll Feed and Take-up with low profile for easy handling of large rolls
- Infrared Dryer Assist for superior finish
- Developer Time Readout
- Exit Time Annunciator
- External Wall Mounted Display Bar
Specifications
|
RTK DP Model |
44-40 |
55-40 |
80-40 |
44-60 |
55-60 |
80-60 |
|
Transport Speed for Paper in inches per minute |
40 |
40 |
40 |
60 |
60 |
60 |
|
Transport Speed for Display Trans. in inches per minute |
17 |
17 |
17 |
25 |
25 |
25 |
|
Dry to Dry Time for Paper in minutes |
5 |
5 |
5 |
5 |
5 |
5 |
|
Dry to Dry Time for Display Trans. in minutes |
12 |
12 |
12 |
12 |
12 |
12 |
|
Developer Tank Capacity in gallons |
9 |
12.6 |
16.5 |
14 |
19 |
26 |
|
Bleach/Fix Tank Capacity in gallons |
7.5 |
9.6 |
14 |
11.6 |
14.5 |
22 |
|
Wash Tank Capacity (per tank) in gallons |
7.5 |
9.6 |
14 |
11.6 |
14.5 |
22 |
|
Wash Water Flow Rate in gallons per minute |
3 |
3 |
4 |
4 |
4 |
6 |
|
Power Requirements (in KVA)* |
15.5 |
23 |
24 |
15.5 |
23 |
24 |
|
Dimension "A" in inches |
52 |
61.25 |
88.75 |
52 |
61.25 |
88.75 |
|
Dimension "B" in inches |
58 |
67.25 |
94.75 |
58 |
67.25 |
94.75 |

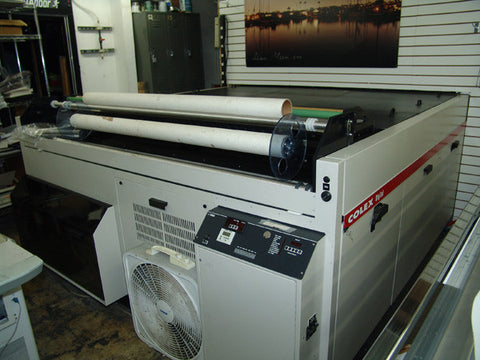

Colex RTK Digital Ready 80" RTK80-40 RA4 Processor (MPN: RTK80-40)
